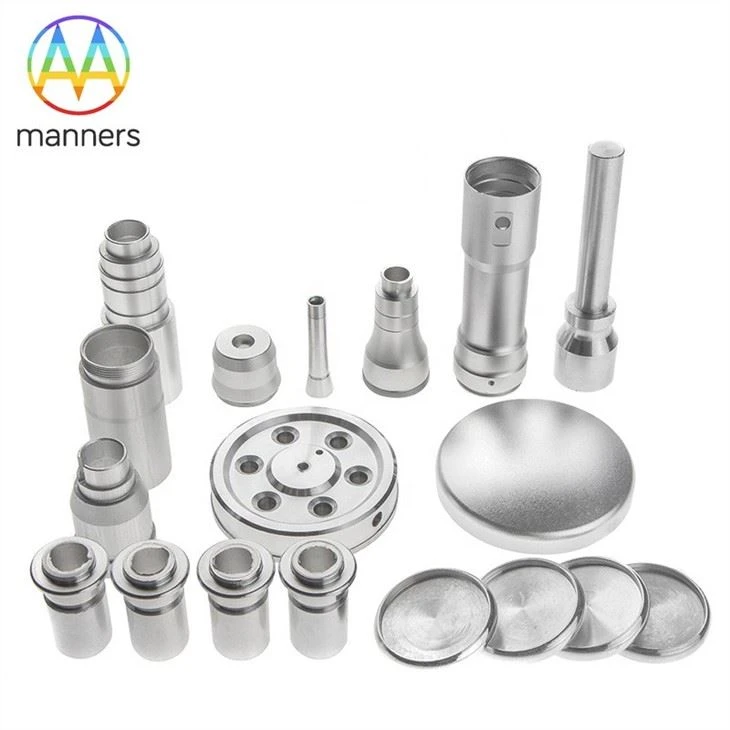

Aluminum Coupler Parts

1.We can provide low volume rapid prototype service.
2.We possess some of the most powerful CNC equipment.
3.Our machines provide our customers with many material options.
4.Provide one-stop service to customers.
5.24-hour after-sale response.

A szálláslekérdezés elküldése

Leírás

Product specification

Product name	Aluminum Coupler Parts
material	Aluminum 6061, Aluminum 6063, Aluminum 7075, etc.
Surface Treatment	Anodizing, Sandblasting, Painting, Powder coating, Plating, Silk Printing, Brushing, Polishing, Laser Engraving
Machining Option	Turning, grinding, milling, welding, bending, drilling, swaging, flaring, slot-cutting, stamping, deep-drawing, capping, beveling, etc.
Custom feature	According to your 2D/3D Drawing or sample provided
Package	Standard carton or according to customer's requirement
Certification	ISO9001:2015, SGS

Product show

General design does not consider the force of the nut and the force of the wire, as long as in accordance with the requirements of the selection of enough tapping depth, and the depth of the screw, steel depth is 1 times diameter, cast iron 1.5 times diameter, aluminum 2 times diameter;

There are three kinds of bolt forces:

1, loose connection without pretightening force, bolt by 1 times the force, according to the general cylindrical strength calculation;

2, only the first preload, by friction to balance in and, the bolt by preload tension stress, and the composite stress of shear stress when tightening, bolt by 1.3 times the force, but also according to the cylinder;

3, after the preload, and applied axial load, if it is static load and the second kind of similar, (preload plus tensile stress) ×1.3 is used to calculate the force, dynamic load is much more complex.

Hope it works for you!

215-2

308-1

207-1 204-1

297-1 245-1 72-1

Our factory

Production equipment

Equipment List	Brand	Type	Working Track	Tolerance (mm)	Quantity (Set)
CNC Milling Machine	FANUC	FANUC Machining Center	500400320	0.01	15
Brother	Brother Tapping Center	500400300	0.02	10	1
HATEN	Drilling & tapping machine		0.02	5	2
LK	Machining Center		0.02	7	2
Harvest Star	CNC Machine	depend on different models	0.015	10	1
Mazak	Vertical Machining Center	910550450* plus 30-(-120)*0-360	0.005	1	2
SYNTEC	Vertical Machining Center	530400300	0.01-0.005	1	2
Tmt	CNC Machine	depend on different models	0.01	8	2
Sihai	Machining Center		0.02	2	1
Kangcheng	Machining Center		0.02	2	1
Taikan	Machining Center	depend on different models	0.01	110	2
Renishaw	Probe		0.01	80	1
CNC Turning Lathe	Schutte	CNC Lathe	depend on different models	0.005	2
TSUGAMI	CNC High Precision Lathe	depend on different models	depend on different models	2	1
HELONG	CNC Lathe	depend on different models	0.01	20	2
Slotting Machine	YUYI	CNC Slotting Machine		0.01	1
